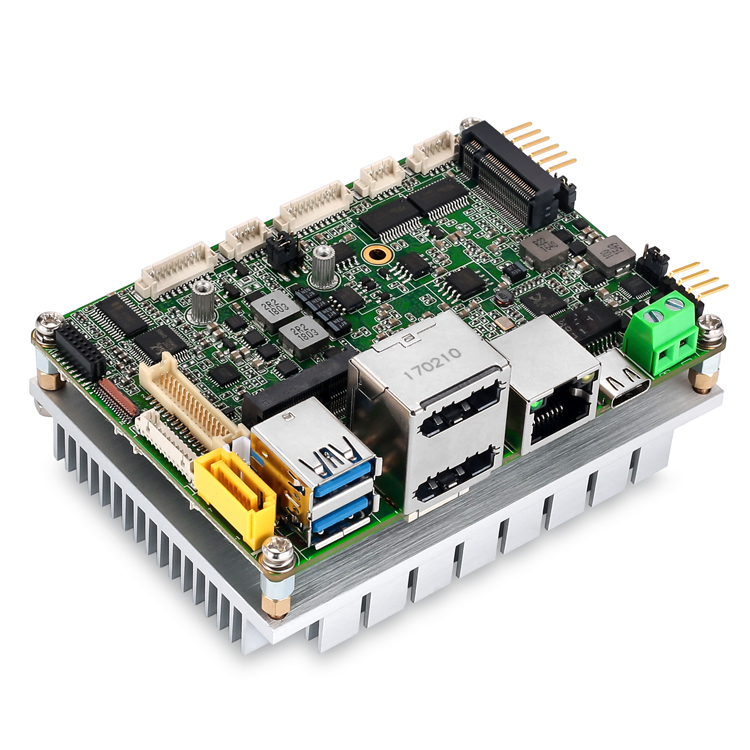

ENC-998,Intel® Celeron Gemini Lake® Atom CPU series,finless design
| Processor | CPU | Intel® Celeron Gemini Lake® Atom CPU series,finless design |
| CPU Socket | Onboard |
| BIOS | SPI 64M,CMOS battery CR2302 |
| System Memory | Tech Architecture | DDR4L 2400MHz,1.2V low voltage JEDEC |
| Max Capacity | Up to 16GB memory |
| Socket | SODIMM |
| Display | Graphic Controller | Intel® Gemini Lake Graphics |
| DP | Support 2 x standard DP Socket |
| EDP | 24BIT EDP DUAL CHANNEL DISPLAY,Max. 4K@60Hz |
| MIPI CSIx4 | PIN single same to KD101N29-34TC MIPI LCD |
| Ethernet | controller | LAN 1:RTL8111F GIGA LAN,RJ45 With LED,POE+PD
Power supply module(>30W,48V input@550mA) |
| LAN 2:RTL8111F GbE LAN,pin-Header |
| Audio | controller | Realtek HD ALC662 audio codec+2 x 15W ampliter |
| Super I/O | controller | INT6102 SIO |
| H/W Monitoring | Watch Dog Timer | Programmable 1~255 sec., Support System Reset |
| I/O | USB | 2 x USB 3.0 Port |
| 1x USB 3.0 PIN-Header |
4x compatible with USB2.0/1.1, Pinheader,
maximum support +5V@1A |
| Serial Port | 1 x RS232/RS485 option, 1 x RS232 |
| Type-c | With power and USB 3.0(Sgle 1 roadUSB3.0) |
| GPIO | 7 Bit GPIO(7GPIO+5V+GND SINGLE),3.3V @24mA |
| Extended signal | 1x PCIEx1/LPC BUS+SMBUS+Switch |
| M2 Scoket | M2 E-KEY 2230 support USB2.0/PCle 1X device |
| M2 B-KEY 2242+2260 support USB2.0/SATA 1X device |
| Storage | SATA | SATA scoket |
| Power | Power Supply | DC-in 12-24V |
| Power Consumption | Typical PW:10W |
| Environment | Operating Temp. | -20°C ~ 70°C |
| Storage Temp. | -40°C ~ 80°C |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| Storage Humidity | 0% ~ 90% relative humidity, non-condensing |
| Formfactor | Dimensions | 100 mm x 72 mm |
| Weight | |
| Certificate | 3C,FCC, CE, RoHS compliant |
ENC-988-CL
Intel® Core N4100 1.10GHz 6W CPU,2 x DP/EDP/MIPI CSI Display,2 x RTL8111F GbE LAN,1 x RS232/485 Option,1 x RS232,SODIMM DDR4L memory, 2 x USB 3.0 Port & 5 x USB Pin-header,1x M-SATA & SATA 3,1X Mimi PCIE,DC 12~24V Voltage input
ENC-988-PL
Intel® Pentium J5005 1.15GHz CPU,2 x DP/EDP/MIPI CSI Display,2 x RTL8111F GbE LAN,1 x RS232/485 Option,1 x RS232,SODIMM DDR4L memory, 2 x USB 3.0 Port & 5 x USB Pin-header,1x M-SATA & SATA 3,1X Mimi PCIE,DC 12~24V Voltage input
