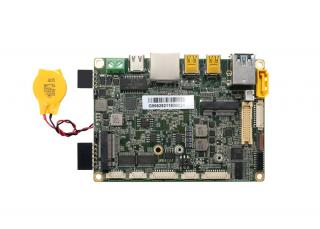

ENC-G998/ENC-G998HE_Intel®CeleronGemini Lake®Atom CPU series ,finless design

Processor	CPU	Intel®CeleronGemini Lake®Atom CPU series ,finless design
	CPU Socket	onboard
	BIOS	SPI 128M,CMOS battery CR2302
Memory	Architecture	DDR4L 2400MHz,1.2 V low voltage JEDEC
	Max.	Up to 16GB RAM
	Socket	SODIMM
Display	Graphic Controller	Intel® Gemini Lake Graphics
	ENC-G998	Support 2 x Mini DP Socket
	ENC-G998HE	Support 1 x standard HDMI Socket
	eDP	24Bit eDP Dual channel display, Max 4K@60Hz
	MIPI CSIx4
Ethernet	Controller	LAN1: RTL8111F GbE LAN, Pin-Header
		LAN2: RTL8111F GbE LAN,RJ45 With LED,POE+PD Power supply module (>30W,48V input@550mA)
Audio	Controller	Realtek HD ALC662 audio codec+15W amplfier
Super I/O	Controller	IT8786E SIO
H/W Monitor	Watch Dog Timer	Programmable 1 ~ 255 sec; Support System Reset
I/O interface	USB	2* USB3.0 Port
		1* USB3.0 Pin-header
		4*USB2.0 / 1.1,Pin-header
	Serial Port	1 x RS232/RS485 optional,1 x RS232
	Type-c	With power and USB 3.0 (Single 1-way USB3.0)
	GPIO	7Bit GPIO(7GPIO+5V+GND SINGLE),3.3V@24mA
	M2 Socket	M2 E-KEY 2230 support USB 2.0/PCIe 1X device
	Controller	M2 B-KEY 2242+2260 support USB 2.0/SATA device
Storage	SATA	SATA socket
Power	Power type	DC-in 12-24V
	Power consumption	Typical PW:10W
Environment	Operating Temp.	-20°C ~ 70°C
	Storage Temp.	-40°C ~ 80°C
	Operating Humidity	0% ~ 90% relative humidity,non-condensing
	Storage Humidity	0% ~ 90% relative humidity,non-condensing
Formfactor	Dimensions	100*72mm
Certificate		3C,FCC, CE, RoHS compliant

ENC-G998-CL
INTEL® Core N4100 1.10GHz 6W CPU,2 x Mini DP/EDP/MIPI DSI Display,2x RTL8111F GbE LAN,1x RS232/485 Option,1 x RS232,SODIMM DDR4L memory,2 x USB3.0 Port &5 x USB Pin-header,1x M2-KEY B & SATA,1x M2-KEY E,DC 12~24V Voltage input.

ENC-G998HE-CL
INTEL® Core N4100 1.10GHz 6W CPU,1 x HDMI/EDP/MIPI DSI Display,2x RTL8111F GbE LAN,1x RS232/485 Option,1 x RS232,SODIMM DDR4L memory,2 x USB3.0 Port &5 x USB Pin-header,1x M2-KEY B & SATA,1x M2-KEY E,DC 12~24V Voltage input.

ENC-G998-PT
INTEL®PentiumJ5005 1.15GHz 10W CPU,2 x Mini DP/EDP/MIPI DSI Display,2x RTL8111F GbE LAN,1x RS232/485 Option,1 x RS232,SODIMM DDR4L memory,2 x USB3.0 Port &5 x USB Pin-header,1x M2-KEY B & SATA,1x M2-KEY E,DC 12~24V Voltage input.

ENC-G998HE-PT
INTEL®PentiumJ5005 1.15GHz 10W CPU,1 x HDMI/EDP/MIPI DSI Display,2x RTL8111F GbE LAN,1x RS232/485 Option,1 x RS232,SODIMM DDR4L memory,2 x USB3.0 Port &5 x USB Pin-header,1x M2-KEY B & SATA,1x M2-KEY E,DC 12~24V Voltage input.
