| Processor | CPU | RK3399 2.0g six-core CPU 2*A72,4*A53 |
| Memory | Architecture | 4GB |
| Storage | EMMC | 64GB |
| SD card | 1*Micro SD card socket |
| EEPROM | Read hardware information |
| Ethernet | WIFI+Bluetooth | Support 2.4GHz/5GHz WIFI,WI-FI 802.11b/g/n/ac protocol，support bluetooth |
| 3G/4G | Support 3G/4G communication, mini-pcie interface |
| LAN | LAN1: 10/100/1000Mbps |
| LAN2: 10/100/1000Mbps |
| H/W Monitor | Watch Dog Timer | 0-255 sec., provide Watchdog program |
| Display | HDMI | HDMI1: max resolution 4K@30Hz |
| HDMI2: max resolution 1080P@30Hz |
| MIPI | Standard 0.5mm 40pin FPC seat, support 1080P |
| LVDS | Dual road 8 channel 24bit, support 1080P |
| IVCN | LVDS backlight interface |
| TOUCH | I2C touch screen interface |
| I/O | Serial port | COM0：TTL 3.3V debug port |
| COM1：default RS232，RS485 optional |
| COM2：default RS232，RS485 optional |
COM3：default RS232，RS485 optional
I/O |
| COM4：default RS232，RS485 optional |
| USB2.0 | 4*USB2.0 |
| USB3.0 | 2*USB3.0 |
| Audio | 2*3.5mm wafer | Earphone/microphone input |
| Audio amplifier | 2W@8Ω |
| LED | | Power status -Led red, system running indicator light-LeD green (normal flashes, unusually bright) |
| Expansion Bus | MINI-PCIE | 1*MINI-PCIE socket |
| RTC Clock | | Cr2032 battery powered |
| Power | Power Type | DC 12V input |
| Power consumption | 36W 12V 3A |
| Environment | Operating Temp. | -20℃~ 70℃ |
| Storage Temp. | -40℃~ 80℃ |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| Storage Humidity | 0% ~ 90% relative humidity, non-condensing |
| Formfactor | Dimensions | 150.6mm x 104.5mm x 41.6mm |
| Certificate | | CE、EMI、EMC、ROSH |

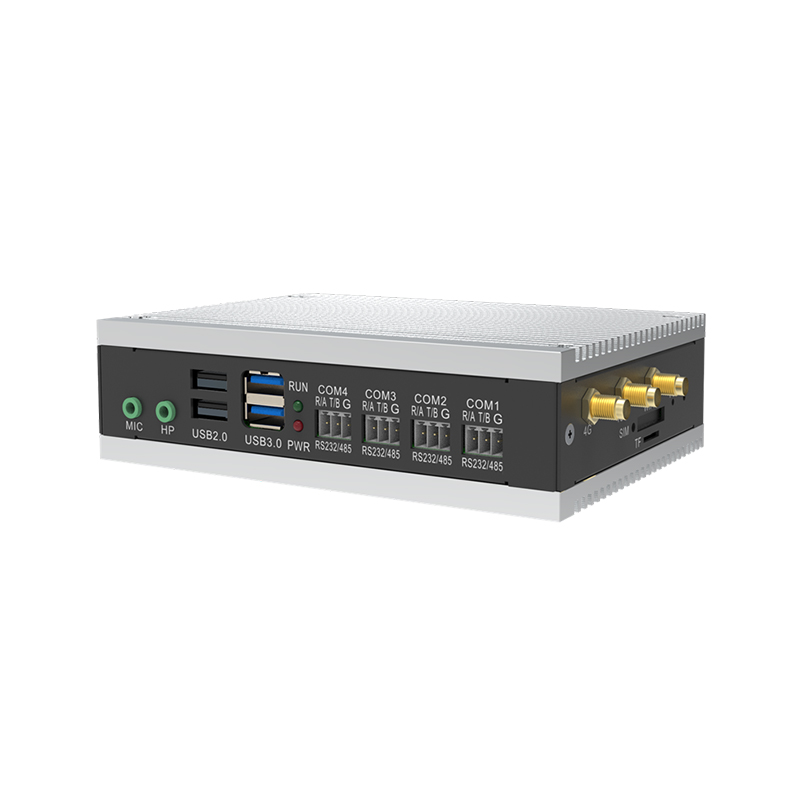

NIS-5211
RK3399 2.0g six core CPU 2*A72,4*A53，4GB memory, 64GB storage，Support
WIFI, bluetooth, 3G/4G, 2*LAN，2*HDMI, 1*MIPI, 1*LVDS, support backlight
interface, support touch interface，1*DEBUG port, 4*RS232/RS485 optional，
4*USB2.0, 2*USB3.0，DC 12V input
