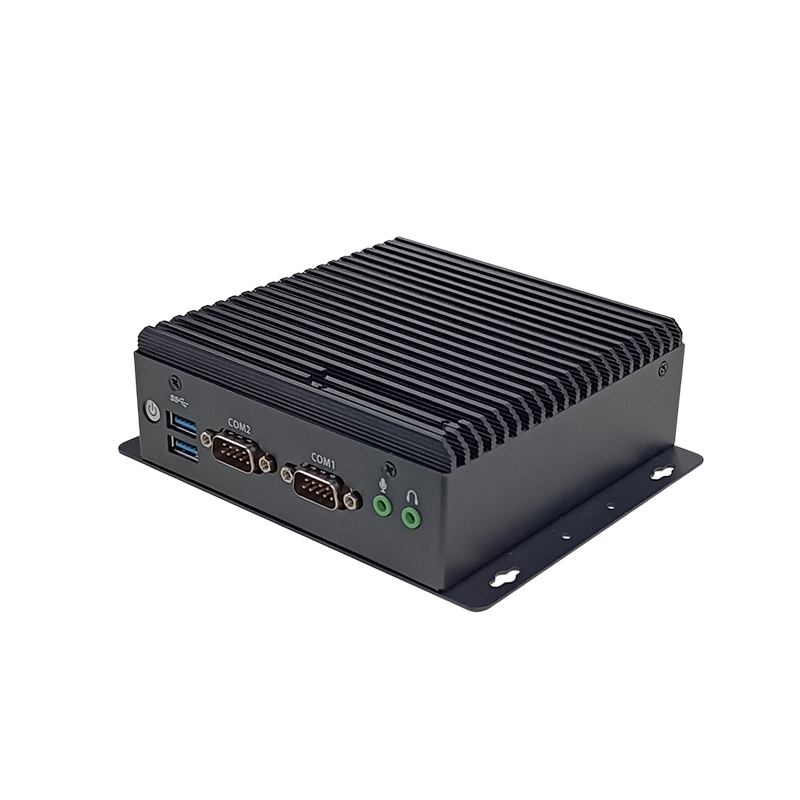

Product Name:NIS-989H
Description:Intel® Elkhart Lake Series CPU

Features:

· Intel® Elkhart Lake series CPU
· DDR4 SODIMM socket
· Support 4G/5G,WIFI,2*HDMI,LVDS/EDP optional
· 2*GbE LAN,4*USB3.0,2*USB2.0,1* internal USB2.0 pin header
· 2*serial port(NIS-989H-LVDS support 6*serial port),support 8bit GPIO
· 1*SATA,1*MSATA
· DC12V-24V input
ProcessorCPUIntel® Elkhart Lake Series CPU
CPU PackageOnboard
BIOSSystem BIOS: SPI BIOS,standard CMOS 65mah
MemoryArchitectureDDR4 SODIMM
SocketSODIMM
DisplayGraphic ControllerIntegrated graphic media accelerator
HDMI2*HDMI,Max. resolution: 4K
LVDS/EDPLVDS/EDP(optional)
Network4G/5Gsupport
WIFIsupport
LANLAN1: RTL8111 GbE LAN,RJ45
LAN2: RTL8111 GbE LAN,RJ45
Audio MIC/Audio
H/W MonitorWatchdog Timer0-255 sec., provide Watchdog program
Temp. MonitorSupport CPU/Motherboard/HDD temp. monitoring
I/OUSB3.04*USB3.0
USB2.02*USB2.0, 1* internal USB2.0 pin header
COMCOM1: 3-wire RS232 TX/RX signal
COM2: 3-wire RS232/485 optional
COM3-COM6: 3-wire RS232, internal pin header(only NIS-989H-LVDS support)
GPIO8 bit,provide program, User-defined I/O,3.3V/5V@24mA level
Expansion BusM2 Key-BM2 Key-B ,support USB 4G/5G communication module
USIM1*USIM slot
StorageSATAStandard SATA socket,with SATA HDD power socket
MSATA1*MSATA
PowerPower Type

AT/ATX power mode optional,DC12-24V input,UP6182,

support power reverse and over-voltage protection

ButtonPower ButtonSwitch with LED, external switch interface
EnvironmentOperating Temp.-20°C ~ 70°C
Storage Temp.-40°C ~ 80°C
Operating Humidity0% ~ 90% relative humidity,non-condensing
Storage Humidity0% ~ 90% relative humidity,non-condensing
FormfactorDimensions154mm × 127.5mm × 48mm
Weight~



NIS-989H-LVDS
Intel® Elkhart Lake series CPU, DDR4 SODIMM socket, Support 4G/5G,WIFI,2*HDMI, 1*LVDS, 2*GbE LAN,4*USB3.0,2*USB2.0, 1* internal USB2.0 pin header, 6*serial port,support 8bit GPIO, 1*SATA,1*MSATA, DC12V-24V input


NIS-989H-EDP
Intel® Elkhart Lake series CPU, DDR4 SODIMM socket, Support 4G/5G,WIFI,2*HDMI, 1*EDP, 2*GbE LAN,4*USB3.0,2*USB2.0, 1* internal USB2.0 pin header, 2*serial port,support 8bit GPIO, 1*SATA,1*MSATA, DC12V-24V input
