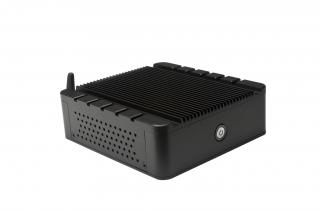

Product Name：NIS-H880B

Description：AMD APU T48/T56N Digital signage Mini PC Box PC with HDMI & VGA independent display

Features：

Promotion Price: FOB SHENZHEN $130.00/Unit (AMD E240 CPU)

AMD®G APU Processor T56N - 1.65GHz/T48N - 1.4GHz

Hardware decoder 1080P MPEG-2, H.264andVC-1 playback

Support HDMI, VGA independent display
Support DirectX 11®, Support OpenGL 3.0

MINI - PCIE support WIFI，3G（USIM SLOT)

Processor System	CPU	AMD eBrazos Processor T56N-1.65GHz / T48N-1.4GHz CPU
	CPU Soket	Onboard
	FSB	800/1066/1333 MHz
	Chipset	AMD eBrazos + Hudson-M1

System Memory	Tech Architecture	Dual channel DDR3 800/1066/1333MHz FSB
	Max.Capacity	Up to 4GB
	Socket	1 * 204pin DDR3 SO-DIMM
System Memory	Graphic Controller	AMD RadeonTM HD6 Series Support DirectX 11
	LVDS	N/A
	LVDS	N/A
	VGA	1 * DB15 VGA
	VGA	Resolution: up to 2560 * 1600
	DVI	N/A
	DVI	N/A
	HDMI	Support Type A HDMI 1.3
	HDMI	Resolution: up to 2560 * 1600
	Dual Display	VGA + HDMI
Ethernet	Controller	LAN1: Realtek 8111DL Gbe LAN
Ethernet	Controller	LAN2:N/A
Audio	Controller	Realtek ALC888 HD Audio Codec（Line-out）
Audio	Amplifier	N/A
TPM	Controller	N/A
I/O Interface	USB	4 * USB 2.0/1.1 compatible
	Serial port	1com/2com(Optional)
	Parallel port	N/A
	PS/2	N/A
	IrDA	N/A
	GPIO	N/A
Expansion Slot	PCIe x16	N/A
	PCIe x4	N/A
	PCIe x1	N/A
	PC104	N/A
	PCI	N/A
	USIM	1 Slot Support Standard SIM（Onboard）
	Mini-PCI	1 * Mini-PCIe slot + 1 * standard SIM Card Slot
Storage	SATA	2 * SATAⅡ, Max.transfer Rate 3Gb/s
	IDE	N/A
	SSD	N/A
	SD Card	N/A
	eSATA	N/A
	Compact Flash	N/A
Operating System	Windows XP/XPE,Vista,Win7
Power Source	Power Supply	DC-in 12V @ 3A
Power Source	Power Consumption	AC 110 V/ 220V
Environment	Operating Temperature	0°C ~ 50°C
	Storage Temperature	-20°C ~ 70°C
	Operating Humidity	0% ~ 90% relative humidity, non-condensing
	Storage Humidity	0% ~ 90% relative humidity, non-condensing
Form Factor	Dimensions	145mm * 135mm * 47mm
Form Factor	Weight	0.45Kg
Regulatory Compliance		CB,UL,FCC,RoHS compliant



NIS-H880-T56N	AMD Dual Core T56N-1.65GHz ,SSD, VGA/HDMI, 1*GBe LAN,Mini BOX PC
NIS-H880-T48N	AMD Dual Core T48N-1.4GHz, SSD, VGA/HDMI, 1*GBe LAN,Mini BOX PC
NIS-H880-T44R	AMD Single Core T44R-1.2GHz ,SSD, VGA/HDMI, 1*GBe LAN,Mini BOX PC
Optional
SATA SSD	8G-32G
WIFI	Y
3G LAN	Y
