| Processor | CPU | Intel® HaswellTM /BrodwellTM U-series CPU (dual core)compatible with I3/I5/I7 |
| Chipset | Intel® Haswell/Brodwell |
| BIOS | SPI BIOS, CMOS 220mah |
| RAM | Architecture | DDR3 MAX 1666 MT/s |
| Capacity | MAX 16GB |
| Socket | SODIMM |
| Display | Graphic Controller | Intel® HD4000/5000/6000 Serial Graphic media accelerator |

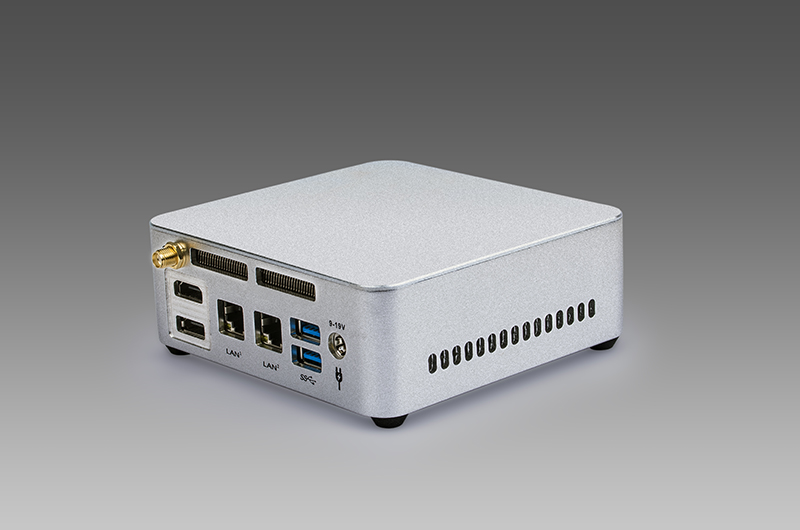

| HDMI | 2 x HDMI 1.4 port Back I/O |
| Max. resolution: 4096 * 2304 24Hz |
| Display | HDMI+HDMI Synchronous or asynchronous display |
| LAN | Controller | LAN 1: RTL8111E GbE With RJ45 Port Back I/O |
| LAN 2: RTL8111E GbE With RJ45 Port Back I/O |
| Audio | Controller | Realtek HD ALC662 audio decoder(Right&left Channel + Mic Front I/O) |
| Super I/O | Controller | NT6102 |
| H/W Monitor | Watch Dog Timer | 0-255 sec., provide watch dog routine |
| Thermal | 12mm slim Fan, support SMART FAN and system temp. detection |
| TPM | Controller | N/A |
| I/O | USB | 2*USB 3.0 Port Back I/O,1*USB 2.0 Port Front I/O |
| Serial Port | Option 2*RS232 With only RX/TX/GND Single,Front I/O |
| Expansion Bus | Mini-PCIe | 1* full size Mini-PCIe(support PCIe & USB devices)(support M-SATA for storage only) |
| USIM | 1 * standard 3G UIM socket |
| Storage | Laptop SATA | 7+15Pin, adopt onboard heightened connecto |
| Power | Power Type | DC9 -19V voltage dynamic input,support reverse power protection |
| Power Consumption | Typical Power: 15W |
| Indicator | BOTTOM | Power Bottom with Blue LED |
| CIR | CIR function |
| Environment | Operating Temp. | -0°C ~ 60°C |
| Storage Temp. | -40°C ~ 80°C |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| Storage Humidity | 0% ~ 90% relative humidity, non-condensing |
| Formfactor | Dimensions | 117mm x 112 x 40mm,Intel NUC |
| Weight | 0.45KG |
| Certificate | | FCC, CE, RoHS |
