· Rockchip RK3568 CPU, Cortext-A55 at position 64 · 2GB LPDDR4X, EMMC 8GB · 1 GbE network port, supporting WIFI and Bluetooth · 3 serial ports, 1 DEBUG debugging serial port, and 14-way GPIO · 2 USB2.0,2 USB3.0 · Support LVDS, HDMI, and IVCN backlight interface · Support MIPI interface (I2C touch interface, CSI camera interface) · DC 9-28V input, support power reverse and overvoltage protection
CR2032 Battery power supply, external real-time clock power supply battery, support the timing switch machine
I/O
DEBUG
DEBUG debug serial port RS232
COM1
5V TTL（15V 2RX 3-TX 4-GND）
COM2
RS232
COM3
RS485
GPIO
4-way GPIO GND VCC3 / 3
USB2.0
2*USB2.0
USB3.0
1*USB3.0
USB3.0
1*USB3.0/OTG
Display
LVDS
Support dual 8-channel 24bit, can support 1080P display output
IVCN
Double backlight
HDMI
Support 1080P 60Hz output, up to 4K 60Hz
MIPI
The MIPI screen + I2C touch interface
The MIPI-CSI camera interface
Audio
SPK
SPK
Audio input
MIC
Audio output
AUDIO
LED
LED two-color light
1*LED
Power
Power type
9-28V input, support power reverse and over-voltage protectio
Environment
working temperature
-20°C ~ 70°C
Storage temperature
-40°C ~ 80°C
Working humidity
0% ~ 90% relative humidity, non-condensing
Store humidity
0% ~ 90% relative humidity, non-condensing
Formfactor
size
66mm*66mm

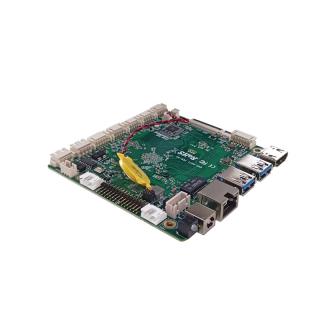

ENC-6571 Rockchip RK3568 CPU, Cortext-A55, 64bit, 2GB LPDDR4X, EMMC 8GB, 1 GbE network port, supporting WIFI and Bluetooth, 3 serial ports, 1 DEBUG debugging serial port, and 14-way GPIO, 2 USB2.0,2 USB3.0, Support LVDS, HDMI, and IVCN backlight interface, Support MIPI interface (I2C touch interface, CSI camera interface), DC 9-28V input, support power reverse and overvoltage protection
